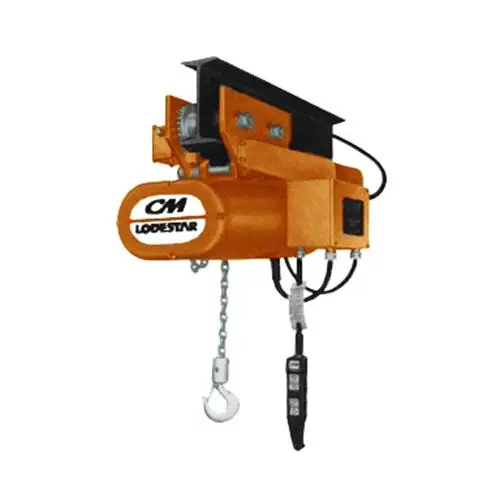

The CM Lodestar (Model R) Electric Chain Hoist is recognized as industry standard for the most demanding and challenging overhead lifting applications. Users have relied on Lodestar for over 50 years now due to its safety standards and dependability. This Electric Chain Hoist includes:
- Adjustable upper and lower limit switches
- Thermal overload protection as standard
- FEM classification 2m (40% duty – 24 minutes continuous
use per hour) - Motor classification H4
- Excellent closed height dimensions A lifetime lubricated gearbox contributes to exceptional
service and maintenance characteristics - Load hook with axial bearing
- Ideal for long heights of lifts
- Large frame, single phase hoists are supplied with handles
and 1mtr supply cable with Cee-Form plug - 2 Ton Heavy H4 duty
- 16 FPM
- 460V‐3PH‐60HZ (115V Control Voltage)
- 20’ Lift
- Motorized Trolley
- Trolley Speeds are 30 or 75 FPM (Please Specify When Ordering)
- Fits a flange width of 3.375”‐5.625”
- Price includes chain container
Shipping will be charged on a separate order.
